ISG立式清水管道泵

产品介绍:ISG/IHG立式管道离心泵,国内水泵专家选用优秀水力模型,采用IS型离心泵之性能参数,在一般立式泵的基础上进行巧妙组合设计而成。同时根据使用温度、介质等不同在ISG型基础上派出适用热水、高温、腐蚀性化工泵、油泵。具有高效节能、噪音低、性能可靠等优点。产品特点:·泵为立式结构,

销售热线:134 0520 0516

全国售后:400-8858-888

返回产品列表

产品介绍:

ISG/IHG立式管道离心泵,国内水泵专家选用优秀水力模型,采用IS型离心泵之性能参数,在一般立式泵的基础上进行巧妙组合设计而成。同时根据使用温度、介质等不同在ISG型基础上派出适用热水、高温、腐蚀性化工泵、油泵。具有高效节能、噪音低、性能可靠等优点。


产品特点

 ·  泵为立式结构,进出口口径相同,且位于同一中心线上,可像阀门一样安装于管路之中。

 ·  叶轮直接安装在电机的加长轴上,轴向尺寸短,结构紧凑美观,占地面积小,建筑投入低,加上防护罩则可置于户外使用。

 ·  泵与电机轴承配置合理,能有效地平衡泵运转产生的径向和轴向负荷,从而保证了泵的运行平稳,振动小、噪音低。

 ·  轴封采用机械密封或机械密封组合,采用进口钛合金密封环、中型耐高温机械密封和硬质合金材质,耐磨密封,能有效地延长使用寿命。

 ·  安装检修方便,无需拆动管道路系统,只要卸下泵联体座螺母即可抽出全部转子部件。

 ·  可根据管路布置的要求采用泵的竖式和横式安装,可根据使用要求即流量和扬程的需要采用泵的串、并联运行方式。



产品用途

 ·  ISG型立式管道离心泵,供输送清水及物理化学性质类似于清水的其他液体之用,适用于工业和城市给排水等冷暖水循环增压及设备配套,使用温度T<80℃。

 ·  IHG型立式管道化工泵,供输送不含固体颗粒,具有腐蚀性,粘度类似于水的液体,适用于石油、化工、电力、造纸、食品制药和合成纤维等部门,使用温度为20℃-+120℃。

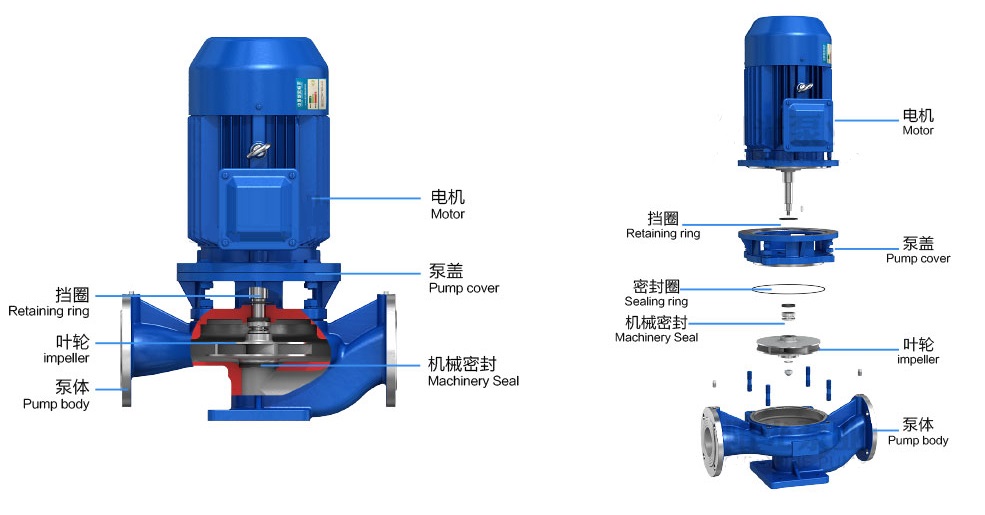

结构图纸:


性能参数
序号型号流量 Q扬程
(m)
效率
(%)
转速
(r/ min)
电机功率
(kw)
必须汽
蚀余量
(NPSH)r
重量
(kg)
(m³/h)(L/s)
115-801.10.38.52628000.182.317
1.50.42834
2.0"0.55734
220-1101.80.5162528000.372.325
2.50.691534
3.30.9113.535
320-1601.80.5331929000.752.329
2.50.693225
3.30.913023
425-1102.80.78163429000.552.326
41.111542
5.21.4413.541
525-1252.80.7820.62829000.752.328
41.112036
5.21.441835
625-125A2.50.69173529000.552.327
3.6116
4.61.2814.4
725-1602.80.78332429001.52.339
41.1132
5.21.4430
825-160A2.60.12293129001.12.334
3.71.0328
4.91.3626
932-1004.512.512.54429000.55227
1032-100(I)4.41.2213.24829000.75232
6.31.7512.554
8.32.3211.353
1132-1253.50.97224029000.752.328
51.392044
6.51.81842
1232-125A3.10.8617.64329000.552.328
4.51.2516
5.81.6114.4
1332-1606.55324429001.52.339
1432-160A41.1253429001.1238
1532-160(I)4.41.2233.23429002.2247
6.31.753240
8.32.3230.242
1632-2004.512.5503229003255
1732-200(I)4.41.2250.52629004243
6.31.755033
8.32.324835
1832-200A2.80.7844.63429002.2274
41.114440
5.21.4442.742
1940-1004.41.2213.24829000.552.332
6.31.7512.554
8.32.3111.353
2040-100A3.91.0810.65229000.372.332
5.61.5610
7.42.069
2140-1254.41.22214129001.12.334
6.31.752046
8.32.311843
2240-125A3.91.0817.64029000.752.333
5.61.561645
7.42.0614.441
2340-1604.41.22333529002.22.347
6.31.753240
8.32.313040
2440-160A4.11.14293429001.52.343
5.91.642839
7.82.1726.339
2540-160B3.81.0625.53429001.12.338
5.51.532438
7.2222.537
2640-2004.41.225126290042.374
6.31.755033
8.32.314832
2740-200A4.11.144536290032.362
5.91.644431
7.82.174230
2840-200B3.71.03382929002.22.352
5.31.4736
71.9434.5
2940-2504.41.22822429007.52.3105
6.31.758028
8.32.317428
3040-250A4.11.14722429005.52.398
5.91.647028
7.82.176527
3140-250B3.71.0661.523290042.377
5.31.536027
71.945626
3240-100(I)8.82.4413.25529001.12.334
12.53.4712.562
16.34.5311.360
3340-100(I)A82.2210.66029000.752.332
113.0510
14.54.039
3440-125(I)8.82.4421.24929001.52.338
12.53.472058
16.34.5317.857
3540-125(I)A82.22175729001.12.333
113.0516
14.54.0314
3640-160(I)8.82.443345290032.356
12.53.473252
16.34.533051
3740-160(I)A8.22.28294429002.22.347
11.73.252851
15.24.222650
3840-160(I)B7.32.38235029001.52.343
10.42.8922
13.53.7520.5
3940-200(I)8.82.4451.23829005.52.385
12.53.475046
16.34.534846
4040-200(I)A8.32.314537290042.375
11.73.254445
15.34.254245
4140-200(I)B7.52.083744290032.363
10.62.9436
13.83.8334
4240-250(I)8.82.4481.2312900112.3145
12.53.478038
16.34.5377.540
4340-250(I)A8.22.28713829007.52.395
11.73.2270
15.24.2268
4440-250(I)B7.62.1161.43729005.52.394
10.8360
143.8958
4540-250(I)C7.11.9753.23629005.52.388
102.7852
13.13.6450.4
4650-1008.82.4413.65529001.12.336
12.53.4712.562
16.34.5311.360
4750-100A82.22116029000.752.335
113.0510
14.54.039
4850-1258.82.4421.54929001.52.343
12.53.472058
16.34.5317.857
4950-125A82.22175729001.12.338
113.0516
14.54.0314
5050-1608.82.443345290032.359
12.53.473252
16.34.533051
5150-160A8.22.28294429002.22.351
11.73.252851
15.24.222650
5250-160B7.32.38235029001.52.347
10.42.8922
13.53.7520.5
5350-2008.82.44523829005.52.3101
12.53.475046
16.34.534846
5450-200A8.32.3145.837290042.380
11.73.254445
15.34.254845
5550-200B7.52.083744290032.368
10.62.9436
13.83.8334
5650-2508.82.4482292900112.3160
12.53.478038
16.34.5377.540
5750-250A8.22.2871.53829007.52.3115
11.63.2270
15.24.2268
5850-250B7.62.1161.43729005.52.3114
10.8360
143.8958
5950-250C7.11.9753.23629005.52.3108
102.7852
13.13.6450.4
6050-100(I)17.54.8613.76729001.52.541
256.9412.569
32.59.0310.569
6150-100(I)A15.64.3116529001.12.536
22.36.191067
298.18.468
6250-125(I)17.54.8621.560290032.556
256.942068
32.59.031867
6350-125(I)A15.64.33175829002.22.548
22.36.191666
298.113.665
6450-160(I)17.54.6834.454290042.572
256.943263
32.59.0327.560
6550-160(I)A16.44.563054290032.571
23.46.52862
30.48.442459
6650-160(I)B154.17265829002.22.559
21.6624
287.7820.6
6750-200(I)17.54.8652.74929007.52.5108
256.945058
32.59.0345.559
6850-200(I)A16.44.5646.44829005.52.5107
23.56.534457
30.58.474058
6950-200(I)B15.24.224055290042.5100
21.86.0638
28.37.8634.5
7050-250(I)17.54.8682392900152.5175
256.948050
32.59.0376.552
7150-250(I)A16.44.5671.5392900112.5165
23.46.57050
30.58.476752
7250-250(I)B154.17613829007.52.5165
21.666049
287.7857.454
7350-315(I)17.54.86128302900302.5310
256.9412540
32.59.0312244
7450-315(I) A16.64.16115302900222.5245
23.76.5811340
318.611044
7550-315(I) B15.74.36"10339290018.52.5215
22.56.25101
29.2898"
7650-315(I) C14.4486382900152.5195
20.65.7285
26.87.4483
7765-10017.54.8613.76729001.52.546
256.9412.569
32.59.0310.569
7865-100A15.64.3116529001.12.541
22.36.191067
298.18.468
7965-12517.54.8621.560290032.558
256.942068
32.59.031867
8065-125A15.64.33175829002.22.549
22.36.191666
298.114.465
8165-16017.54.8634.454290042.575
256.943263
32.59.0327.560
8265-160A16.44.563054290032.575
23.46.52862
30.48.442459
8365-160B154.17265829002.22.563
21.6624
287.7820.6
8465-20017.54.8652.74929007.52.5107
256.945058
32.59.0345.559
8565-200A16.44.5646.44829005.52.5107
23.56.534457
30.58.474058
8665-200B15.24.224055290042.5100
21.86.0638
28.37.8634.5
8765-25017.54.8682392900152.5180
256.948050
32.59.0376.552
8865-250A16.44.5671.5392900112.5170
23.46.57050
30.58.476752
8965-250B154.17613829007.52.5170
21.666049
287.7857.454
9065-31517.54.8612732200302.5320
256.9412540
32.59.0312244
9165-315A16.64.61115322900222.5255
23.76.5811340
318.611044
9265-315B15.74.3610339290018.52.5255
22.56.25101
29.2898
9365-315C14.4486382900152.5205
20.65.7285
26.87.4483
9465-100(I)359.7213.86729003363
5013.912.573
6518.11070
9565-100(I)A31.38.7116629002.2353
44.712.41072
5816.1869
9665-125(I)359.72226729005.5399
5013.92072.5
6518.11770
9765-125(I)A31.38.717.56629004378
4512.51671
5816.113.669
9865-160(I)359.27356329007.53103
5013.93271
6518.12870
9965-160(I)A32.79.130.66229005.53103
46.7132870
6116.92469
10065-160(I)B30.38.4266929004397
43.31224
56.315.621
10165-200(I)359.7253.5552900153176
5013.15067
6516.94668
10265-200(I)A32.89.147542900113166
4713.14466
6116.94067
10365-200(I)B30.58.540.66529007.53114
43.512.138
56.615.733.4
10465-250(I)359.7283522900223235
5013.98059
6518.17260
10565-250(I)A32.597352290018.53105
46.7137059
6116.96360
10665-250(I)B308.362582900153180
43.31260
5615.654
10765-315(I)359.27128442900373350
5013.912554
6518.112157
10865-315(I)A32.59112.6432900303335
46.512.911054
60.516.8106.457
10965-315(I)B318.6102.5532900303335
44.512.4100
5816.198
11065-315(I)C298.187512900223270
4111.485
53.614.983
11180-100359.7213.86729003363
5013.912.573
6518.11070
11280-100A31.38.7116629002.2354
44.712.51072
5816.1869
11380-125359.72226729005.5399
5013.92072.5
6518.11770
11480-125A31.38.717.56629004379
4512.51671
5816.113.669
11580-160359.72356329007.53105
5013.93271
6518.12870
11680-160A32.79.130.66229005.53105
46.7132870
6116.92469
11780-160B30.38.4266929004398
43.31224
56.315.621
11880-200359.7253.5552900153175
5013.95067
6518.14668
11980-200A32.89.147542900113165
4713.14466
6116.94067
12080-200B30.58.540.66529007.53115
43.512.138
56.615.733.4
12180-250359.7283522900223240
5013.98059
6518.17260
12280-250A32.597352290018.53210
46.7137059
6116.96360
12380-250B308.362582900153185
43.31260
5615.654
12480-315359.72128432900373355
5013.912554
6518.112257
12580-315A32.59112.6432900303340
46.512.911054
60.516.8107.457
12680-315B318.6102.5532900303340
44.512.4100
5816.198
12780-315C298.198512900223275
4111.485
53.614.983
12880-350359.72146552900553570
5013.915066
6518.114267
12980-350A318.6138.4652900453470
44.512.4142
5816.1134.8
13080-350B298.1131.4632900373440
4111.4135
53.614.9127.8
13180-100(I)7019.413.66629005.54.5108
10027.812.576
13036.11175
13280-100(I)A62.617.41164290044.587
8924.71074
11632.28.874
13380-125(I)7019.423.5702900114.5163
10027.82076
13036.11465
13480-125(I)A62.617.4196829007.54.5113
8924.71674
11632.21165
13580-160(I)7019.436.5702900154.5184
10027.83276
13036.12465
13680-160(I)A65.418.232682900114.5174
93.5262874
121.633.82167
13780-160(I)B60.616.8277229007.54.5174
86.624.124
112.531.318
13880-200(I)7019.454652900224.5251
10027.85074
13036.14273
13980-200(I)A65.418.247.567290018.54.5220
93.5264473
121.633.83772
14080-200(I)B6116.941712900154.5198
8724.238
11331.432
14180-250(I)B6116.965662900224315
8724.260
11331.451
14280-315(I)7019.4132552900754675
10027.812566
13036.111467
14380-315(I)A66.518.5119552900554535
9526.411366
123.634.310367
14480-315(I)B6317.5106.6652900454420
9025101
11732.592
14580-315(I)C5816.190632900374366
8222.885
10729.776
146100-1007019.413.66629005.54.5113
10027.812.576
13036.11175
147100-100A62.617.41164290044.591
89471074
11632.28.874
148100-1257019.423.5702900114.5169
10027.82076
13036.11465
149100-125A62.617.4196829007.54.5118
8924.71674
11632.21163
150100-1607019.436.5702900154.5191
10027.83276
13036.12465
151100-160A65.418.232682900114.5181
93.5262874
121.633.82167
152100-160B60.616.8277229007.54.5181
86.624.124
112.531.318
153100-2007019.454652900224245
10027.85074
13036.14273
154100-200A65.418.247.564290018.54215
93.5264473
121.633.83772
155100-200B6116.941712900154193
8724.238
11331.432
156100-2507019.487622900374345
10027.88069
13036.16868
157100-250A65.418.276612900304330
93.5267068
121.633.859.567
158100-250B6116.965662900224330
8724.260
11331.451
159100-3157019.4132552900754689
10027.812566
13036.111467
160100-315A66.518.5119652900554549
9526.411366
123.634.310367
161100-315B6317.5106.6652900454439
9025101
11732.592
162100-315C5816.190632900374385
8222.885
10729.776
163100-100(I)9626.714642900114.5115
16044.412.573
19253.31070
164100-125(I)9626.724622900154.5168
16044.42074
19253.31469
165100-125(I)A8423.320642900114.5168
140391772
16846.71268
166100-160(I)9626.736692900225.6210
16044.43279
19253.32775
167100-160(I)A8423.33266290018.55210
140392876
16846.723.572
168100-200(I)9626.753692900375.2402
16044.45079
19253.34578
169100-200(I)A8423.348642900304.5395
140394574
16846.74073
170100-200(I)B6016.743722900224.5360
10027.840
12033.336
171100-250(I)9626.783652900554.8560
16044.48077
19253.37274
172100-250(I)A8423.375602900454.5420
140397272
16846.76569
173100-250(I)B6016.768702900374.5400
10027.865
12033.358
174100-3506016.7153.6722900904950
10027.815057
12033.314274
175100-350A6116.9145.6752900754830
8724.2142
11331.4134
176100-350B5816.1138.6752900554600
8222.8135
10729.7127
177125-1009626.713822900114180
16044.412.5
19253.312
178125-100A8623.910.47729007.54125
14339.710
17247.89.6
179125-1259626.722.6802900154220
16044.420
19253.317
180125-125A8623.918772900114210
14339.716
17247.813.6
181125-1609626.736782900224265
16044.432
19253.328
182125-160A902531.576290018.54230
15041.728
1805024.5
183125-160B8321.727732900154215
13838.324
16646.121
184125-2009626.755772900375.5395
16044.450
19253.346
185125-200A902548.4762900305.5380
15041.744
1805040.5
186125-200B8321.741.3752900225.5320
13838.337.5
16646.134.5
187125-2509626.787752900555580
16044.480
19253.373
188125-250A902576742900455.5490
15041.770
1805084
189125-250B8321.765732900375.5430
13838.360
16646.155
190125-3159626.7133702900905790
16044.7125
19253.3119
191125-315A9025117702900755710
15041.7110
18050104.6
192125-315B8623.9106.4692900755705
14339.7100
17247.895.2
193125-315C80.522.496672900555585
13437.288
16144.786
194150-1259626.722.6662900114210
16044.72476
19253.31776
195150-125A9025187729007.54130
15041.716
1805013.6
196150-1609626.736752900224270
16044.432
19253.327
197150-160A90253276290018.54230
15041.728
1805023.5
198150-160B8423.327732900154220
1403924
16846.721
199150-20014038.913.8681450153265
20055.612.578
26072.210.678
200150-200A12534.711661450113244
17649.71076
232.564.68.576
201150-200B8423.341752900224275
1403938
16846.734
202150-25014038.921.873145018.53300
20055.62079
26072.21777
203150-250A12935.818.5721450153262
184.451.21778
24066.714.476
204150-250B11732.515.2761450113241
16746.414
217.560.412
205150-31514038.933.8701450302.5410
20055.63278
26072.22873
206150-315A13136.429.5691450223.5335
18751.92877
24367.524.577
207150-315B12133.52576145018.53.5315
17348.124
22562.521
208150-3509626.7153.68029001105.5970
16044.4150
19253.3142.8
209150-350A9025145.6702900905.2790
15041.7142
18050134.8
210150-350B8423.3138.6652900755.5705
1403913576
16846.7127.874
211150-40014038.953681450453.5490
20055.65075
26072.24471
212150-400A13136.446.6671450373.5454
18751.94474
24367.538.370
213150-400B12233.940731450303.5435
17448.338
226.562.933
214150-400C11231.134711450223.5365
16044.432
20857.828
215150-250(I)12033.387652900754.5702
20055.68076
24066.77274
216150-250(I)A11231.176642900554.5561
18751.97075
22462.26373
217150-250(I)B10428.965632900454.5460
17348.16074
20857.85472
218150-315(I)12033.31335829001104.5980
20055.612573
24066.712075
219150-315(I)A11231.1116572900904.5800
18751.911072
22462.210574
220150-315(I)B10428.9100552900754.5724
17348.19570
20857.89172
221200-20014038.913.8681450153265
20055.612.578
26072.210.678
222200-200A12534.711661450113244
17949.71076
232.564.68.576
223200-25014038.921.873145018.53305
20055.62079
26072.21777
224200-250A12935.818.5721450153267
184.451.21778
24066.714.476
225200-250B11732.515.2761450113246
16746.414
217.560.412
226200-31514038.933.8701450303.5417
20055.63278
26072.22878
227200-315A13136.429.5691450223.5342
18951.92877
24367.524.577
228200-315B12133.62576145018.53.5322
17348.124
22562.521
229200-40014038.953681450453.5498
20055.65075
26072.24471
230200-400A13136.446.6671450373.5462
18751.94474
24367.538.370
231200-400B12233.940731450303.5443
17448.638
226.562.933
232200-400C11231.334711450223.5373
16044.432
20857.828
233200-200(I)28077.813.4701450224382
400111.112.580
52014410.579
234200-200(I)A25069.410.768145018.54346
35899.41078
465129.28.577
235200-250(I)28077.822.2751450304475
400111.42080
5201441472
236200-250(I)A25069.418731450224405
35899.61478
465129.211.270
237200-250(I)B22662.814.470145018.54387
32289.41375
419116.47.367
238200-315(I)28077.836731450554675
400111.43280
5201442675
239200-315(I)A26272.831.5721450454560
374103.92879
4861352374
240200-315(I)B24267.227781450374535
34696.124
45012519.5
241200-400(I)28077.854.5751450754830
400111.45081
5201443977
242200-400(I)A26272.848801450754830
374103.944
48613534
243200-400(I)B24267.241.4781450555685
34696.138
45012529.6
244200-400(I)C22462.234.9761450455580
32088.932
416115.625
245250-25035097.222781450455620
550152.82082
650180.51681
246250-250A30083.318.3761450375550
5001391780
600166.71480
247250-23530083.314731480224.5410
50013912.578
600166.71170
248250-30030083.322781480374.5550
50013920
600166.716
249250-31535097.234761450755.5890
550152.83280
650180.52879
250250-315A30083.329.5741450555.5690
5001392878
600166.72477
251250-315B26072.225701450455.5620
4501252474
520144.42072
252250-40030083.354.5721480904.51530
50013950
600166.739
253300-23554015020.57714505551075
7202001881
900"2501574
254300-235A45012517.2741450455970
6001661579
72020012.577
255300-235B420116.714.3731450375925
54015012.878
65018110.570
256300-25054015022.58014505561085
7202002083
9002501784
257300-250A45013619.5811450456980
60016617
72020014
258300-300540150328214807551230
72020028
90025023
259300-300A45012527.58014807551095
60016624
72020020
260300-300B420116.724781480555980
54015021
65018117
261300-31554015035841480904.51350
72020032
90025026
262300-315A460127.831.5801480754.51240
65018028
80022223.5
263300-315B420116.727781480554.51100
58016124
70019420
264300-380480133.3488497013251900
72020044
90025034
265300-380A444123.341.48097011051700
66618538
833231.430
266300-380B400113.635789709051530
614170.632
764213.135
267300-39054015020.5789805551300
7202001881
90025015.576
268300-390A45012617.2779804551220
6001671579
72020012.875
269300-390B40011114749803751100
54015012.577
65018011.576
270300-4004501255578148011051500
60016650
72020042.5
271300-48054015031799807551500
7202002881
9002502480
272300-480A45012627.4789807551280
6001662480
7202002079
273300-480B40011124799805551180
54015021
65018017
274350-23560016714801480374.51050
80022212.583
96026710.582
275350-30060016722.5791480554.51230
8002222082
96026717.571
276350-31560016735.5841480904.51650
80022232
96026728.5
277350-400600167558314801604.51950
80022250
96026745.5
278400-300820228237814809061570
108030020
130036116
279400-31582020536.576148013261880
108030032
130034427
280500-3001000277.82380148011061800
120033320
145040316
281500-315100027834.578148016062070
120033332
145040327



版权由苏州帕姆泵业有限公司所有    苏ICP备2021017551号
